King SSP Sound

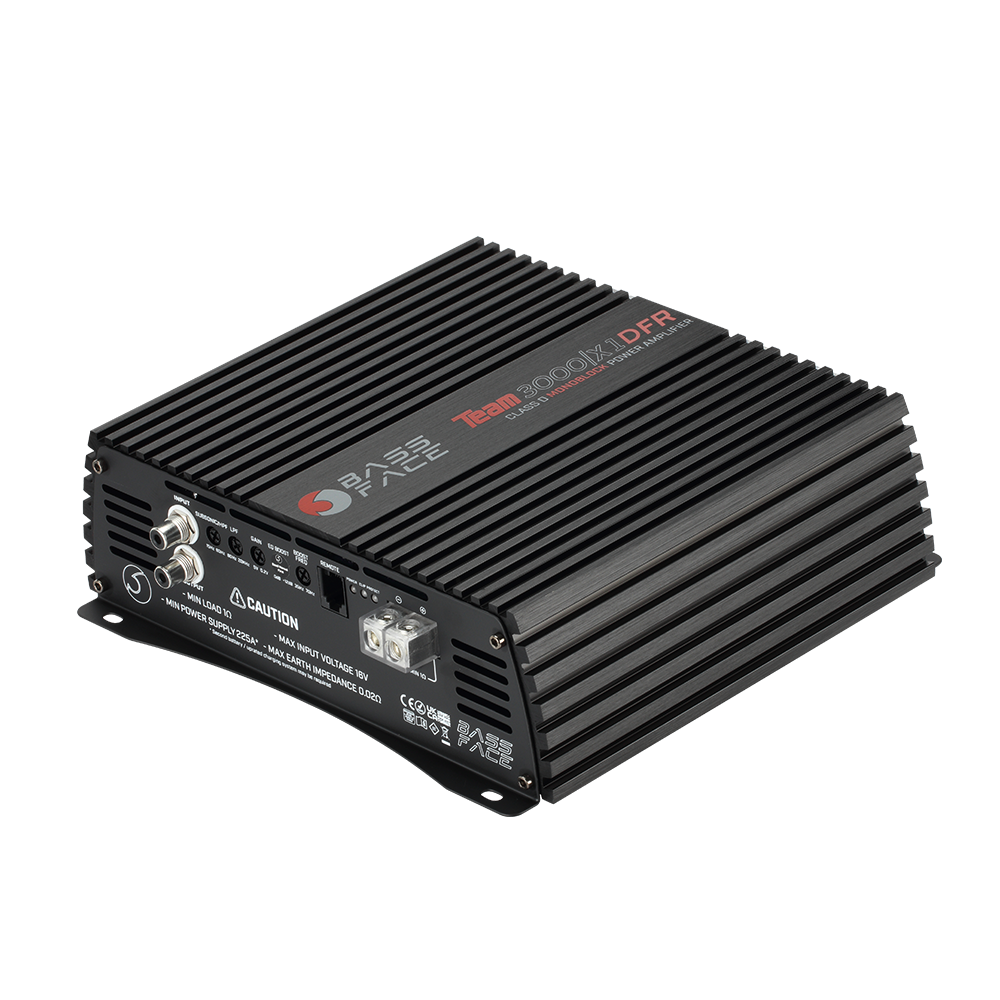

Team 3000/X1DFR Class D Monoblock Full Range Amplifier 3000w RMS
Team 3000/X1DFR Class D Monoblock Full Range Amplifier 3000w RMS
Regular price
£199.95 GBP
Regular price
£232.00 GBP
Sale price
£199.95 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
These are no details spared high performance amplifiers using transformer class technology allowing for a compact design while offering huge power. Featuring a sleek satin finish the new Team Series delivers ultimate performance in an unbelievably compact package. Do not let the size of these amplifiers fool you – the current requirements for this level of output are considerable. Installation using the exactly correct cables, batteries and alternator is essential. The amplifiers offer wide crossover adjustments and will accommodate high power RCA and main voltage input. Top quality RCA terminals, power connections and speaker terminal blocks are standard, as is individual factory burn in per amplifier and QC stamp with serial number. The amplifiers are supplied in high quality packaging for protection, and come with printed instructions and comprehensive data sheets as well as having additional important information printed on the body of the units. Finally, output power is rated correctly – what you read is what you get – the Team Series offers stellar performance at an affordable price. This is a full range model, ideal for running arrays of mid range speakers. This model incorporates our latest technology, which produces muh more power at higher impedances than traditional amplifiers. This offers more flexibility in terms of installation, and massively combats the onset of "box rise" impedance changes during playback, maintaining enormous output accross a wider frequency spectrum.
TECHNICAL HIGHLIGHTS
- Class D Transformer - Ultimate Power Full Range Mono Amplifier
- Power Output 1 x 3000W RMS @ 1 Ohm Load
- Power Output 1x2000W RMS @ 2 Ohm Load
- New Gen Architecture Produces Amazing Power At All Impedances, Combatting Box Rise
- 6.5V Stable RCA Input + Line Output
- 80>20000Hz LPF / 15>80Hz HPF Crossovers
- Minimum Power Supply 225A via 1x 0AWG Input
- 20>22000Hz Response / 88dB Signal To Noise Ratio
- 16.2V Capable Power Input
- Included Bass Remote & CableSERIES

WHAT'S IN THE BOX?

- 1 x Amplifier
- 1 x Bass Remote Control
- 1 x Hardware Pack
- 1 x Bassface Sticker
- 1 x Documentation Set
KEY FACTS
Product Category | Amplifiers |
Version | 1 |
Series | Team |
First Added | 10/10/2023 |
Last Modified | 27/02/2024 |
Barcode | 5060905111947 |
Production Status | Current |
Product Net Weight (g) (For Pairs/Sets/Major Parts) | 2500 |
Product Height (mm) | 66.5 |
Product Length (mm) | 185 |
Product Width (mm) | 225 |
Complete Product Pack Weight (g) | 3000 |
Operating Temperature (Degrees Celsius) | 0-50 |
Weatherproof Rating | In-Car Only |
Warranty (Months) - Private Enjoyment Use Only | 12 |
Sold As | Single |
AMPLIFIER DATA
Genuine Useable RMS Power, 2Ohm (Watts), < 1%THD, 14v | 2000x1 |
Genuine Useable RMS Power, 1Ohm (Watts), < 1%THD, 14v | 3000x1 |
Frequency Response (Hz) | 20>22000 |
Signal To Noise Ratio (db) | 88 |
LPF (Hz) | 80>20000 |
Bass Boost (Db) | 0>12 |
Boost Frequency (Hz) | 35>70 |
Subsonic Filter (Hz) | 15>80 |
Audio Signal Input Voltage (V) | 0.22>6.5 |
LPF Slope (Db/Oct) | 12 |
Subsonic Filter Slope (Db/Oct) | 12 |
Amplifier Topology | Class D Transformer |
Maximum Input Voltage (V) | 16.2 |
Fuse Rating (Amps) | Unfused |
Power Wire Input Gauge (AWG) | 2x 0 |
Minimum Recommend Final Load Per Channel (Ohms) | 1 Mono |
Input Impedance (KOhms) | 20 |
